產品特性:
*鋁合金材質烤漆
*10mm厚鋼化玻璃
*不鏽鋼304緊固螺栓
*耐用水密密封條

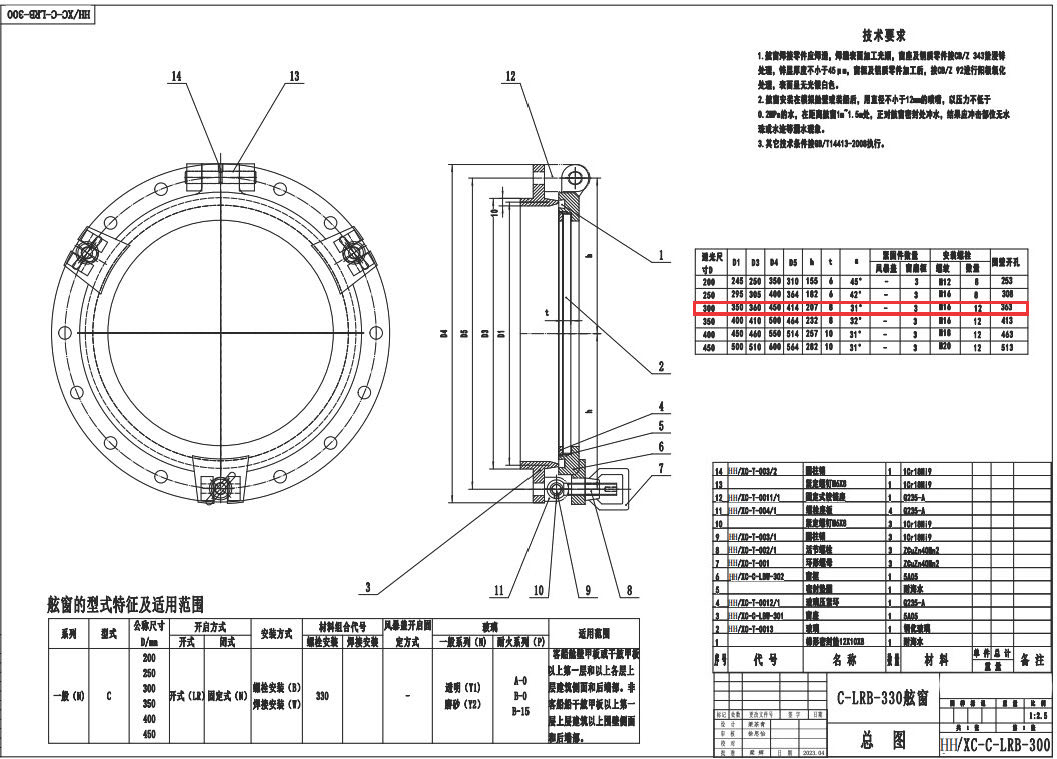

| Model 產品型號 | Lens size 鏡面尺寸 | Wall opening 壁面開孔 | Fixing bolt dia. 固定螺栓直徑 | Overall size 整體尺寸 | Lens thickness 鏡片厚度 |
|---|---|---|---|---|---|
| C-LBR-200 | Ø200mm | Ø253mm | Ø310mm | Ø350mm | 6mm |
| C-LBR-250 | Ø200mm | Ø303mm | Ø364mm | Ø400mm | 6mm |
| C-LBR-300 | Ø250mm | Ø363mm | Ø414mm | Ø450mm | 8mm |
| C-LBR-350 | Ø250mm | Ø413mm | Ø464mm | Ø500mm | 8mm |
| C-LBR-400 | Ø300mm | Ø463mm | Ø514mm | Ø550mm | 10mm |
| C-LBR-450 | Ø300mm | Ø513mm | Ø564mm | Ø600mm | 10mm |
