產品介紹
*直徑與軸尺寸精確配合，間隙正確，可實現高效的水潤滑。
*薄殼單元可用於小型船隻。
*提供英制和公制尺寸
*可根據要求提供定制尺寸
*對於軸尺寸：3/4″ 至 6-1/2″ (19.05mm – 165.10mm)
銅橡膠軸承(公制)

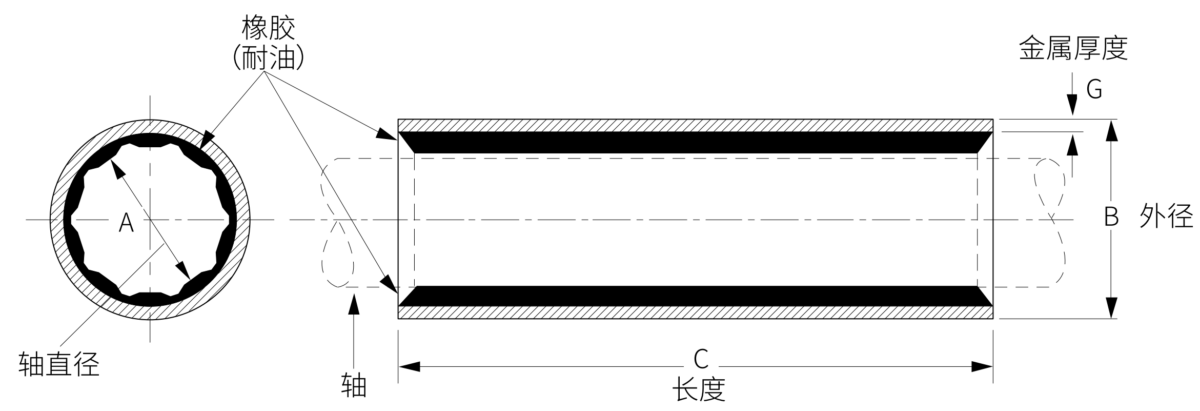

| 產品編號 | 軸(內)徑 (mm) | 外徑 (mm) | 長度 (mm) | 金屬厚度 (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| DE013M101 | 25 | 40 | 100 | 2.54 | 0.4 |
| DE013M102 | 28 | 42 | 112 | 2.35 | 0.3 |
| DE013M103 | 30 | 45 | 120 | 3.07 | 0.5 |
| DE013M104 | 32 | 45 | 128 | 3.07 | 0.6 |
| DE013M105 | 35 | 50 | 140 | 3.07 | 0.7 |
| DE013M106 | 38 | 55 | 152 | 3.07 | 0.8 |
| DE013M107 | 40 | 55 | 160 | 3.07 | 0.8 |
| DE013M108 | 45 | 65 | 180 | 3.3 | 1.3 |
| DE013M109 | 50 | 70 | 200 | 3.26 | 1.4 |
| DE013M110 | 55 | 75 | 220 | 2.58 | 1.7 |
| DE013M111 | 60 | 80 | 240 | 3.26 | 2 |
| DE013M112 | 65 | 85 | 260 | 2.82 | 2.2 |
| DE013M113 | 70 | 90 | 280 | 4.76 | 2.6 |
| DE013M114 | 75 | 95 | 300 | 3.05 | 3 |
| DE013M115 | 80 | 100 | 320 | 3.17 | 3.5 |
| DE013M116 | 85 | 105 | 340 | 3.19 | 3.9 |
| DE013M117 | 90 | 110 | 360 | 4.78 | 5.7 |
| DE013M118 | 95 | 115 | 380 | 4.51 | 6 |
| DE013M119 | 100 | 125 | 400 | 3.77 | 6.5 |
| DE013M120 | 105 | 130 | 420 | 4.52 | 8 |
| DE013M121 | 110 | 135 | 440 | 4.51 | 8.6 |
| DE013M122 | 115 | 145 | 460 | 4.25 | 11 |
| DE013M123 | 120 | 155 | 480 | 6.06 | 14 |
| DE013M124 | 130 | 170 | 520 | 5.63 | 22 |
| DE013M125 | 140 | 180 | 560 | 7.45 | 25 |
銅橡膠軸承(英制)
| 產品編號 | 軸徑 (inch) | 外徑 (inch) | 長度 (inch) | 金屬厚度 (inch) | 重量 (Kg) |
|---|---|---|---|---|---|
| DE013I101 | 3/4 | 1-1/4 | 3 | 1/8 | 0.2 |
| DE013I102 | 7/8 | 1-1/4 | 3-1/2 | 1/16 | 0.2 |
| DE013I103 | 7/8 | 1-3/8 | 3-1/2 | 1/8 | 0.3 |
| DE013I104 | 7/8 | 1-1/2 | 3-1/2 | 1/8 | 0.4 |
| DE013I105 | 1 | 1-1/4 | 4 | 1/16 | 0.2 |
| DE013I106 | 1 | 1-1/4 | 6 | 1/16 | 0.3 |
| DE013I107 | 1 | 1-3/8 | 4 | 1/16 | 0.2 |
| DE013I108 | 1 | 1-1/2 | 4 | 1/8 | 0.3 |
| DE013I109 | 1 | 1-5/8 | 4 | 1/8 | 0.4 |
| DE013I110 | 1 | 2 | 4 | 1/8 | 0.6 |
| DE013I111 | 1-1/8 | 1-1/2 | 4-1/2 | 1/16 | 0.3 |
| DE013I112 | 1-1/8 | 1-5/8 | 4-1/2 | 1/8 | 0.5 |
| DE013I113 | 1-1/8 | 1-3/4 | 4-1/2 | 1/8 | 0.5 |
| DE013I114 | 1-1/8 | 2 | 4-1/2 | 1/8 | 0.6 |
| DE013I115 | 1-1/4 | 1-1/2 | 5 | 1/16 | 0.3 |
| DE013I116 | 1-1/4 | 1-3/4 | 5 | 1/8 | 0.5 |
| DE013I117 | 1-1/4 | 2 | 5 | 1/8 | 0.7 |
| DE013I118 | 1-1/4 | 2-1/8 | 5 | 1/8 | 0.8 |
| DE013I119 | 1-3/8 | 1-7/8 | 5-1/2 | 1/8 | 0.6 |
| DE013I120 | 1-3/8 | 2 | 5-1/2 | 1/8 | 0.7 |
| DE013I121 | 1-3/8 | 2-1/8 | 5-1/2 | 1/8 | 0.8 |
| DE013I122 | 1-3/8 | 2-3/8 | 5-1/2 | 1/8 | 0.8 |
| DE013I123 | 1-1/2 | 2 | 6 | 1/8 | 0.7 |
| DE013I124 | 1-1/2 | 2-3/8 | 6 | 1/8 | 1.0 |
| DE013I125 | 1-5/8 | 2-1/8 | 6-1/2 | 1/8 | 1.9 |
| DE013I126 | 1-5/8 | 2-5/8 | 6-1/2 | 1/8 | 1.2 |
| DE013I127 | 1-3/4 | 2-3/8 | 7 | 1/8 | 1.0 |
| DE013I128 | 1-3/4 | 2-1/2 | 7 | 3/32 | 1.1 |
| DE013I129 | 1-3/4 | 2-5/8 | 7 | 1/8 | 1.3 |
| DE013I130 | 1-7/8 | 2-5/8 | 7-1/2 | 1/8 | 1.3 |
| DE013I131 | 1-7/8 | 2-15/16 | 7-1/2 | 3/32 | 1.4 |
| DE013I132 | 2 | 2-5/8 | 8 | 1/8 | 1.3 |
| DE013I133 | 2 | 2-3/4 | 8 | 1/8 | 1.5 |
| DE013I134 | 2 | 3 | 8 | 1/8 | 1.7 |
| DE013I135 | 2-1/8 | 2-15/16 | 8-1/2 | 1/8 | 1.4 |
| DE013I136 | 2-1/8 | 3-1/8 | 8-1/2 | 1/8 | 1.9 |
| DE013I137 | 2-1/4 | 2-15/16 | 9 | 3/32 | 1.4 |
| DE013I138 | 2-1/4 | 3 | 9 | 1/8 | 1.8 |
| DE013I139 | 2-1/4 | 3-1/8 | 9 | 1/8 | 2.0 |
| DE013I140 | 2-1/4 | 3-3/8 | 9 | 1/8 | 2.3 |
| DE013I141 | 2-3/8 | 3-3/8 | 9-1/2 | 1/8 | 2.2 |
| DE013I142 | 2-1/2 | 3-1/8 | 10 | 1/8 | 2.0 |
| DE013I143 | 2-1/2 | 3-1/4 | 10 | 1/16 | 1.4 |
| DE013I144 | 2-1/2 | 3-3/8 | 10 | 1/8 | 2.3 |
| DE013I145 | 2-1/2 | 3-1/2 | 10 | 5/32 | 3.0 |
| DE013I146 | 2-5/8 | 3-3/8 | 10-1/2 | 1/8 | 2.4 |
| DE013I147 | 2-3/4 | 3-3/8 | 11 | 1/8 | 2.2 |
| DE013I148 | 2-3/4 | 3-1/2 | 11 | 5/32 | 3.0 |
| DE013I149 | 2-3/4 | 3-3/4 | 11 | 1/8 | 3.0 |
| DE013I150 | 2-7/8 | 3-3/4 | 11-1/2 | 1/8 | 2.9 |
| DE013I151 | 3 | 3-3/4 | 12 | 1/8 | 3.1 |
| DE013I152 | 3 | 4 | 12 | 1/8 | 3.5 |
| DE013I153 | 3-1/8 | 4-1/4 | 12-1/2 | 1/8 | 3.9 |
| DE013I154 | 3-1/4 | 4 | 13 | 1/8 | 3.5 |
| DE013I155 | 3-1/4 | 4-1/4 | 13 | 1/8 | 3.9 |
| DE013I156 | 3-3/8 | 4-1/2 | 13-1/2 | 1/8 | 4.6 |
| DE013I157 | 3-1/2 | 4-1/4 | 14 | 1/8 | 4.0 |
| DE013I158 | 3-1/2 | 4-1/2 | 14 | 1/8 | 4.7 |
| DE013I159 | 3-5/8 | 4-1/2 | 14-1/2 | 1/8 | 4.5 |
| DE013I160 | 3-3/4 | 4-1/2 | 15 | 1/8 | 4.4 |
| DE013I161 | 3-3/4 | 5 | 15 | 3/16 | 7.5 |
| DE013I162 | 3-3/4 | 5-1/4 | 15 | 3/16 | 8.3 |
| DE013I163 | 3-7/8 | 5-1/4 | 15-1/2 | 3/16 | 8.5 |
| DE013I164 | 4 | 5 | 16 | 3/16 | 7.7 |
| DE013I165 | 4 | 5-1/4 | 16 | 3/16 | 8.5 |
| DE013I166 | 4-1/8 | 5-1/4 | 16-1/2 | 3/16 | 8.6 |
| DE013I167 | 4-1/4 | 5-1/2 | 17 | 3/16 | 10.0 |
| DE013I168 | 4-3/8 | 5-3/4 | 17-1/2 | 3/16 | 10.8 |
| DE013I169 | 4-1/2 | 5-1/2 | 18 | 3/16 | 9.7 |
| DE013I170 | 4-1/2 | 5-3/4 | 18 | 3/16 | 10.8 |
| DE013I171 | 4-5/8 | 6-1/8 | 18-1/2 | 1/4 | 19.1 |
| DE013I172 | 4-3/4 | 6-1/8 | 19 | 1/4 | 18.6 |
| DE013I173 | 4-7/8 | 6-1/8 | 19-1/2 | 1/4 | 18.9 |
| DE013I174 | 5 | 6-1/8 | 20 | 1/4 | 19.2 |
| DE013I175 | 5 | 6-1/2 | 20 | 1/4 | 22.1 |
| DE013I176 | 5-1/4 | 6-3/4 | 21 | 1/4 | 22.8 |
| DE013I177 | 5-1/4 | 7 | 21 | 1/4 | 24.9 |
| DE013I178 | 5-3/8 | 6-3/4 | 21-1/2 | 1/4 | 23.3 |
| DE013I179 | 5-3/8 | 7 | 21-1/2 | 1/4 | 25.4 |
| DE013I180 | 5-1/2 | 7 | 22 | 1/4 | 25.4 |
| DE013I181 | 5-1/2 | 7-1/4 | 22 | 3/8 | 26.4 |
| DE013I182 | 5-5/8 | 7 | 22-1/2 | 1/4 | 25.2 |
| DE013I183 | 5-3/4 | 7 | 23 | 1/4 | 25.6 |
| DE013I184 | 5-7/8 | 7-1/2 | 24 | 1/4 | 29.8 |
| DE013I185 | 6 | 7-1/2 | 24 | 1/4 | 29.9 |
| DE013I186 | 6-1/2 | 8-3/8 | 30 | 7/16 | 68.0 |
