產品特性:
內膠層：黑色光滑橡膠，耐廢氣、惰性氣體、熱水、海水和低濃度化學產品。

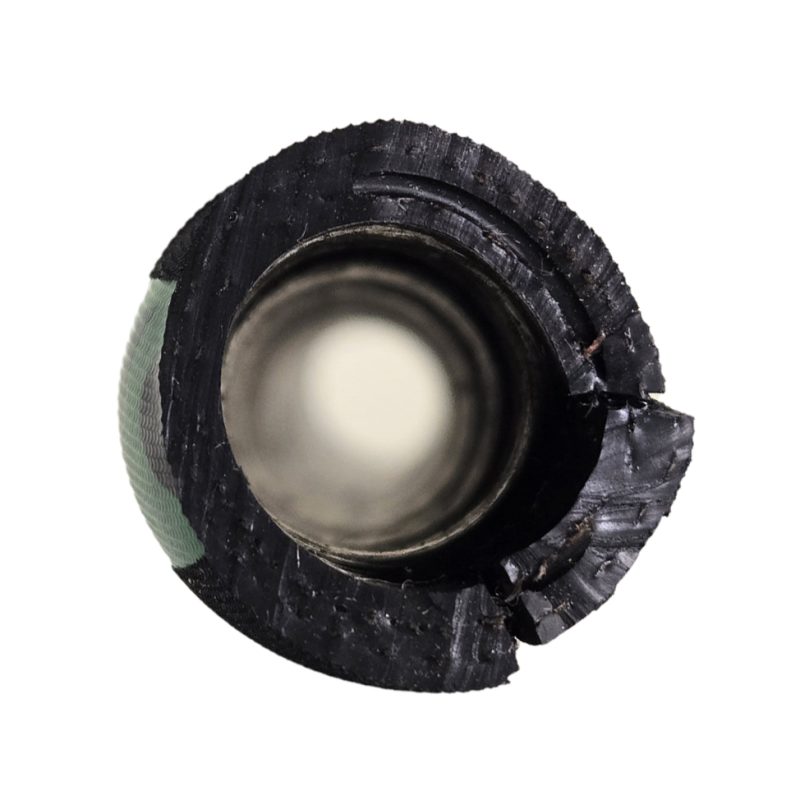

增強層：雙鋼螺旋，高強度合成紡織布。
外膠層：黑色橡膠-耐磨、耐熱、耐候。

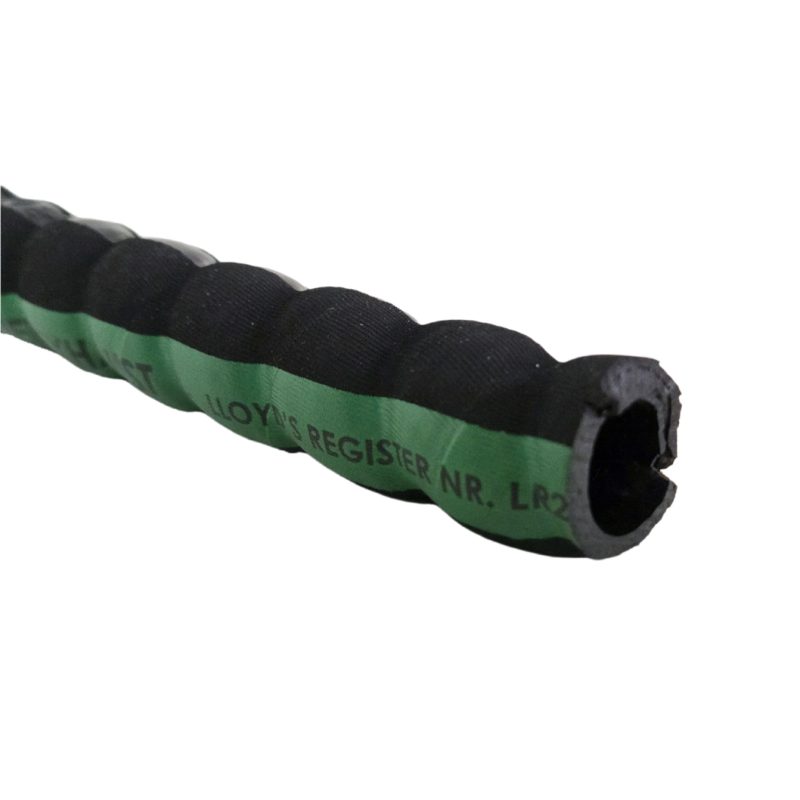

表面：波紋織物飾面。

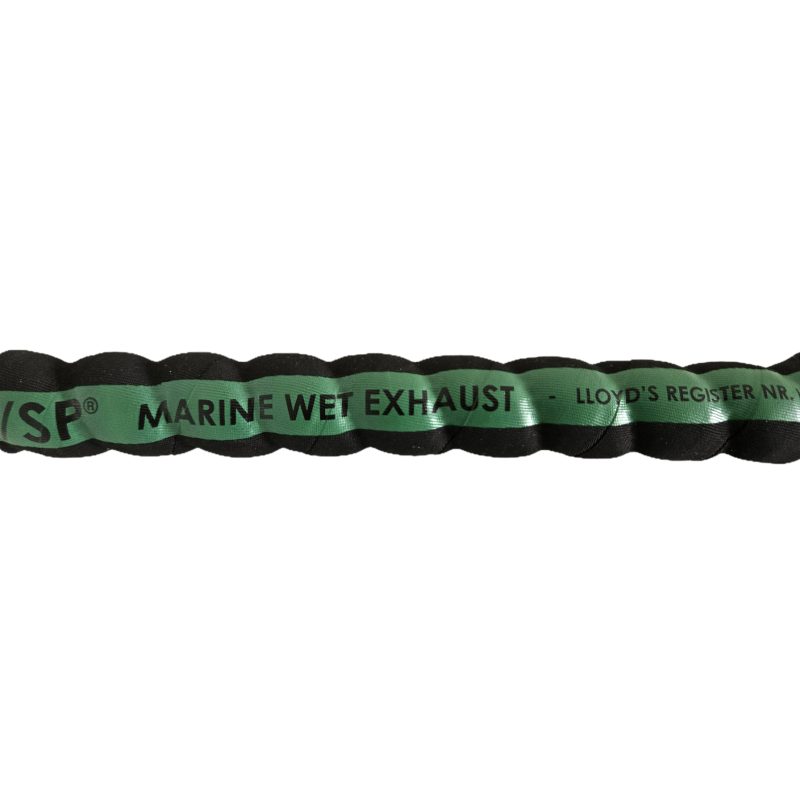

產品識別：黑色墨水綠色條紋ITALY SCAMO/SP MARINE WET EXHAUST APPROVED – LLOYDS REGISTER N. 9600127 – RINA N. DIP 075110CS 浮雕條紋SAE J 2006: 2003 R2 – ISO 13363 CL -3363 CL 內部直徑- 年
| 產品型號 | 內徑mm | 管壁厚mm | 重量kg/m | 工作壓力bar | 爆破壓力bar | 彎曲半徑mm | 包裝長度m |
|---|---|---|---|---|---|---|---|
| TGMSO0290160040 | 16 | 4 | 0.57 | 3 | 9 | 20 | 20 |
| TGMSO0290190040 | 19 | 4 | 0.57 | 3 | 9 | 20 | 20 |
| TGMSO0290250040 | 25 | 4 | 0.61 | 3 | 9 | 25 | 20 |
| TGMSO0290300040 | 30 | 4 | 0.68 | 3 | 9 | 30 | 20 |
| TGMSO0290320040 | 32 | 4 | 0.76 | 3 | 9 | 32 | 20 |
| TGMSO0290350040 | 35 | 4 | 0.82 | 3 | 9 | 35 | 20 |
| TGMSO0290380040 | 38 | 4 | 0.88 | 3 | 9 | 38 | 20 |
| TGMSO0290400040 | 40 | 4 | 0.92 | 3 | 9 | 40 | 20 |
| TGMSO0290450040 | 45 | 4 | 1.10 | 3 | 9 | 45 | 20 |
| TGMSO0290510050 | 51 | 5 | 1.16 | 3 | 9 | 51 | 20 |
| TGMSO0290550050 | 55 | 5 | 1.25 | 3 | 9 | 55 | 20 |
| TGMSO0290570050 | 57 | 5 | 1.27 | 3 | 9 | 57 | 20 |
| TGMSO0290600050 | 60 | 5 | 1.35 | 3 | 9 | 60 | 20 |
| TGMSO0290630050 | 63.5 | 5 | 1.60 | 3 | 9 | 63.5 | 20 |
| TGMSO0290700050 | 70 | 5 | 1.72 | 3 | 9 | 70 | 20 |
| TGMSO0290760050 | 76 | 5 | 1.95 | 3 | 9 | 76 | 20 |
| TGMSO0290800050 | 80 | 5 | 2.10 | 3 | 9 | 80 | 20 |
| TGMSO0290850050 | 85 | 5 | 2.30 | 3 | 9 | 85 | 20 |
| TGMSO0290900050 | 90 | 5 | 2.50 | 3 | 9 | 90 | 20 |
| TGMSO0291020050 | 102 | 5 | 2.96 | 3 | 9 | 152 | 20 |
| TGMSO0291050050 | 105 | 5 | 3.10 | 3 | 9 | 230 | 20 |
| TGMSO0291100060 | 110 | 6 | 3.20 | 3 | 9 | 220 | 10/20 |
| TGMSO0291140060 | 114 | 6 | 3.30 | 3 | 9 | 230 | 10/20 |
| TGMSO0291200060 | 120 | 6 | 3.45 | 3 | 9 | 240 | 10/20 |
| TGMSO0291270060 | 127 | 6 | 3.65 | 3 | 9 | 255 | 10/20 |
| TGMSO0291300060 | 130 | 6 | 3.80 | 3 | 9 | 260 | 10/20 |
| TGMSO0291420060 | 142 | 6 | 4.10 | 3 | 9 | 285 | 10 |
| TGMSO0291520060 | 152 | 6 | 4.20 | 3 | 9 | 305 | 10/20 |
| TGMSO0291550070 | 155 | 7 | 4.50 | 3 | 9 | 465 | 10 |
| TGMSO0291600070 | 160 | 7 | 4.80 | 3 | 9 | 480 | 10 |
| TGMSO0291680070 | 168 | 7 | 5.50 | 3 | 9 | 500 | 10 |
| TGMSO0291750080 | 175 | 8 | 6.20 | 3 | 9 | 525 | 10 |
| TGMSO0291800080 | 180 | 8 | 6.50 | 3 | 9 | 720 | 10 |
| TGMSO0292030080 | 203 | 8 | 6.90 | 3 | 9 | 815 | 10 |
| TGMSO0292540090 | 254 | 9 | 8.50 | 3 | 9 | 1270 | 10 |
| TGMSO0293050100 | 305 | 10 | 10.90 | 3 | 9 | 1830 | 10 |
