產品特性:
*聚丙烯(polypropylene)材質
*不銹鋼304鉸鍊及螺絲

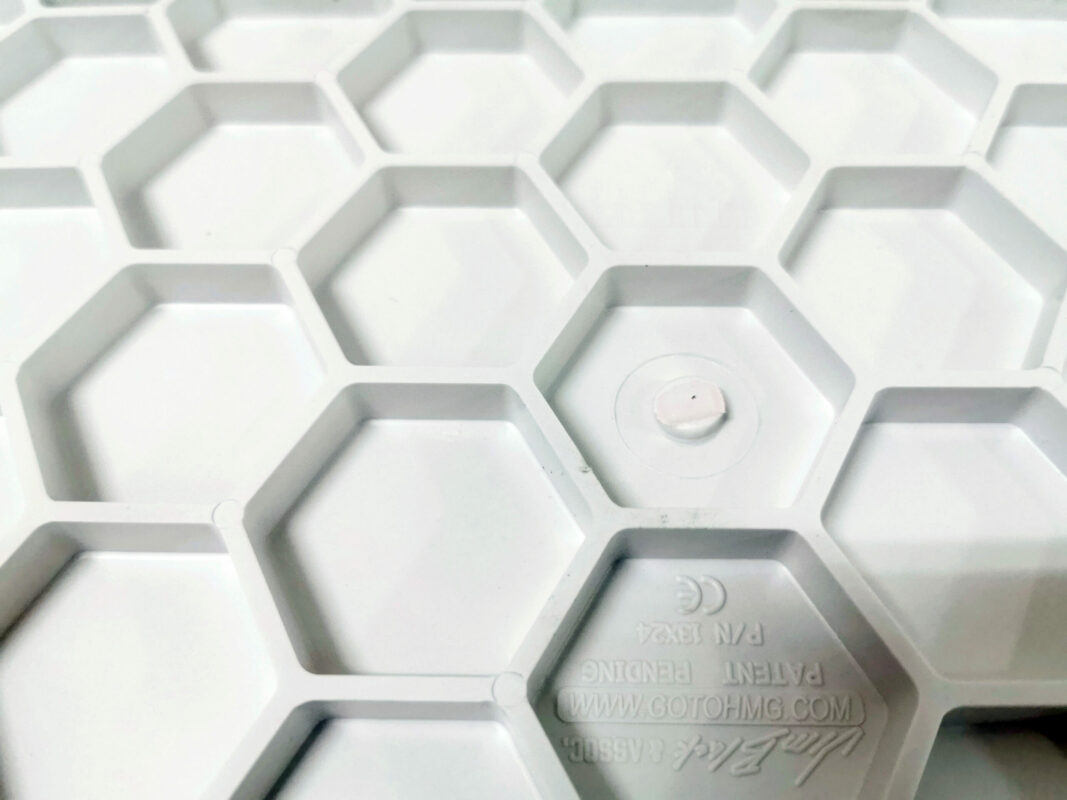

六角型蜂窩結構
| 產品型號 | 外徑 | 內徑 | 開孔尺寸 |
|---|---|---|---|
| 581-714-05 | 197*375mm | 111*279mm | 133*302mm |
| 581-912-02 | 248*330mm | 181*267mm | 162*238mm |
| 581-918-05 | 248*483mm | 181*391mm | 162*419mm |
| 581-924-05 | 248*635mm | 181*543mm | 162*572mm |
| 581-1014-05 | 257*362mm | 172*276mm | 197*292mm |
| 581-1115-05 | 279*387mm | 191*292mm | 222*321mm |
| 581-1119-05 | 279*483mm | 191*392mm | 222*422mm |
| 581-1317-05 | 330*451mm | 241*356mm | 270*384mm |
| 581-1320-05 | 330*502mm | 241*413mm | 270*441mm |
| 581-1324-05 | 330*610mm | 241*514mm | 270*543mm |
| 581-1330-05 | 330*762mm | 241*670mm | 270*708mm |
| 581-1620-05 | 426*533mm | 337*445mm | 265*467mm |
| 581-1624-04 | 426*635mm | 335*545mm | 265*568mm |
