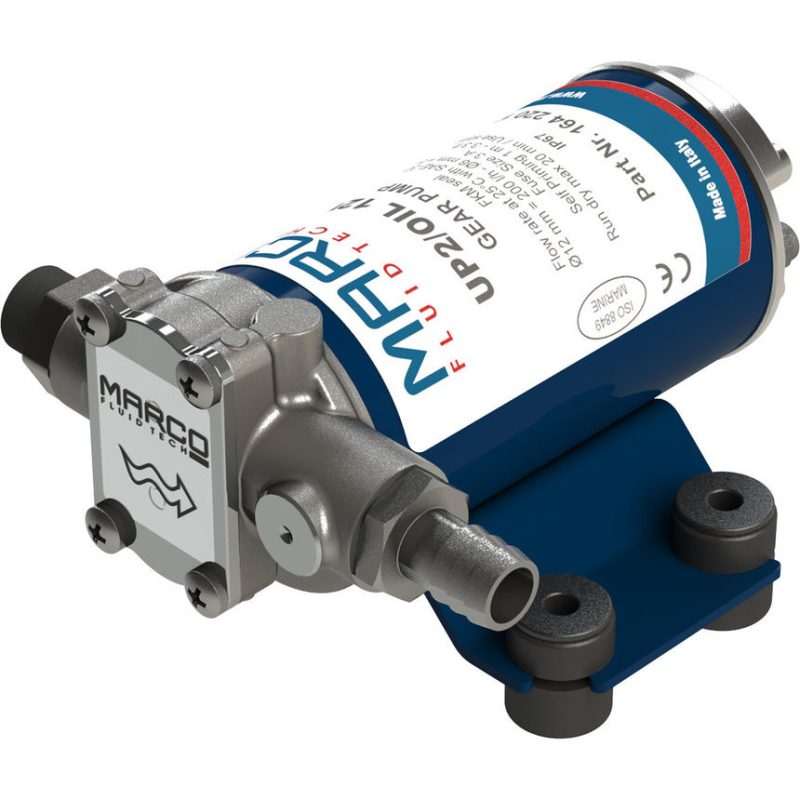

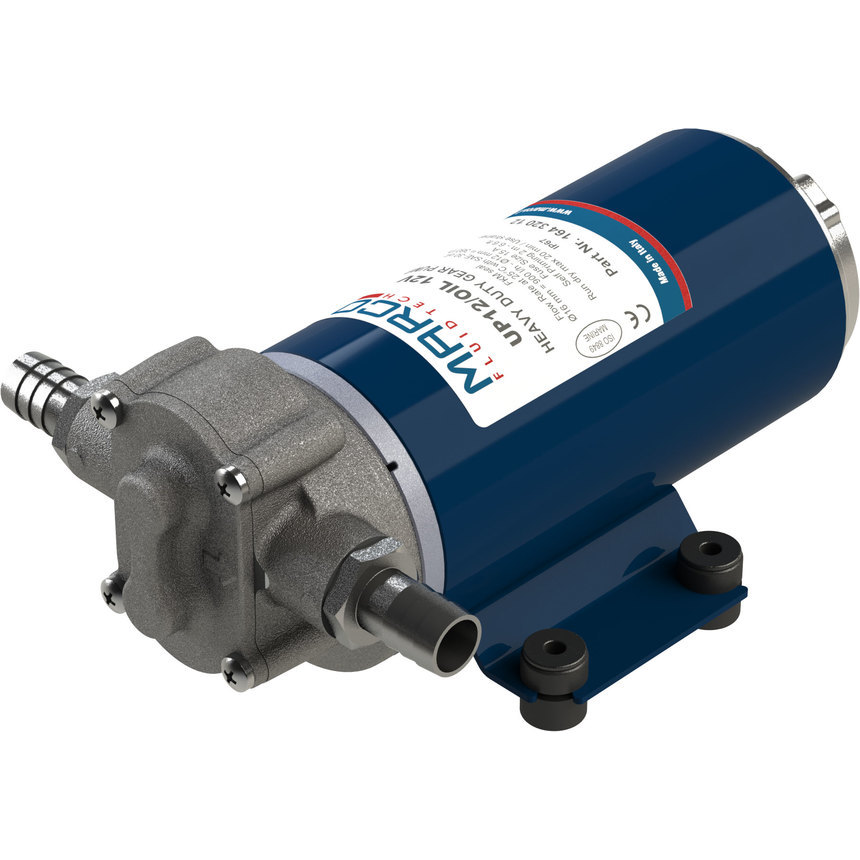

MARCO-UP/OIL輸油泵
| 產品型號 | 電壓 | 最大流量 | 電流 | 壓力值 | 牙規 | 尺寸 |
|---|---|---|---|---|---|---|
| 164 220 12 | 12V | 52.9GPH/Φ12mm | 3.2A | 22psi | 3/8"BSP | 218*115*73mm |
| 164 220 13 | 24V | 52.9GPH/Φ12mm | 1.6A | 22psi | 3/8"BSP | 218*115*73mm |
| 164 020 12 | 12V | 87.2GPH/Φ12mm | 6.0A | 29psi | 3/8"BSP | 159*166*101mm |
| 164 020 13 | 24V | 87.2GPH/Φ12mm | 4.0A | 29psi | 3/8"BSP | 159*166*101mm |
| 164 080 12 | 12V | 126.82GPH/Φ14mm | 11.0A | 29psi | 1/2"BSP | 199*174*108mm |
| 164 080 13 | 24V | 126.82GPH/Φ14mm | 6.0A | 29psi | 1/2"BSP | 199*174*108mm |
| 164 320 12 | 12V | 238GPH/Φ16mm | 20.0A | 36psi | 1/2"BSP | 217*174*113mm |
| 164 320 13 | 24V | 238GPH/Φ16mm | 11.0A | 36psi | 1/2"BSP | 217*174*113mm |
